PISTONS - S3 SHERCO and Sherco engined Scorpa 250cc

Composition & treatment:
• Top quality Aluminium-Silicium alloy
• Casted or forged
• Molybdenum disulfide protective layer.
• Equiped with nitrided steel rings

Features:
• Lightweight and resistant
• Limits the vibrations
• The engine will build up revs faster

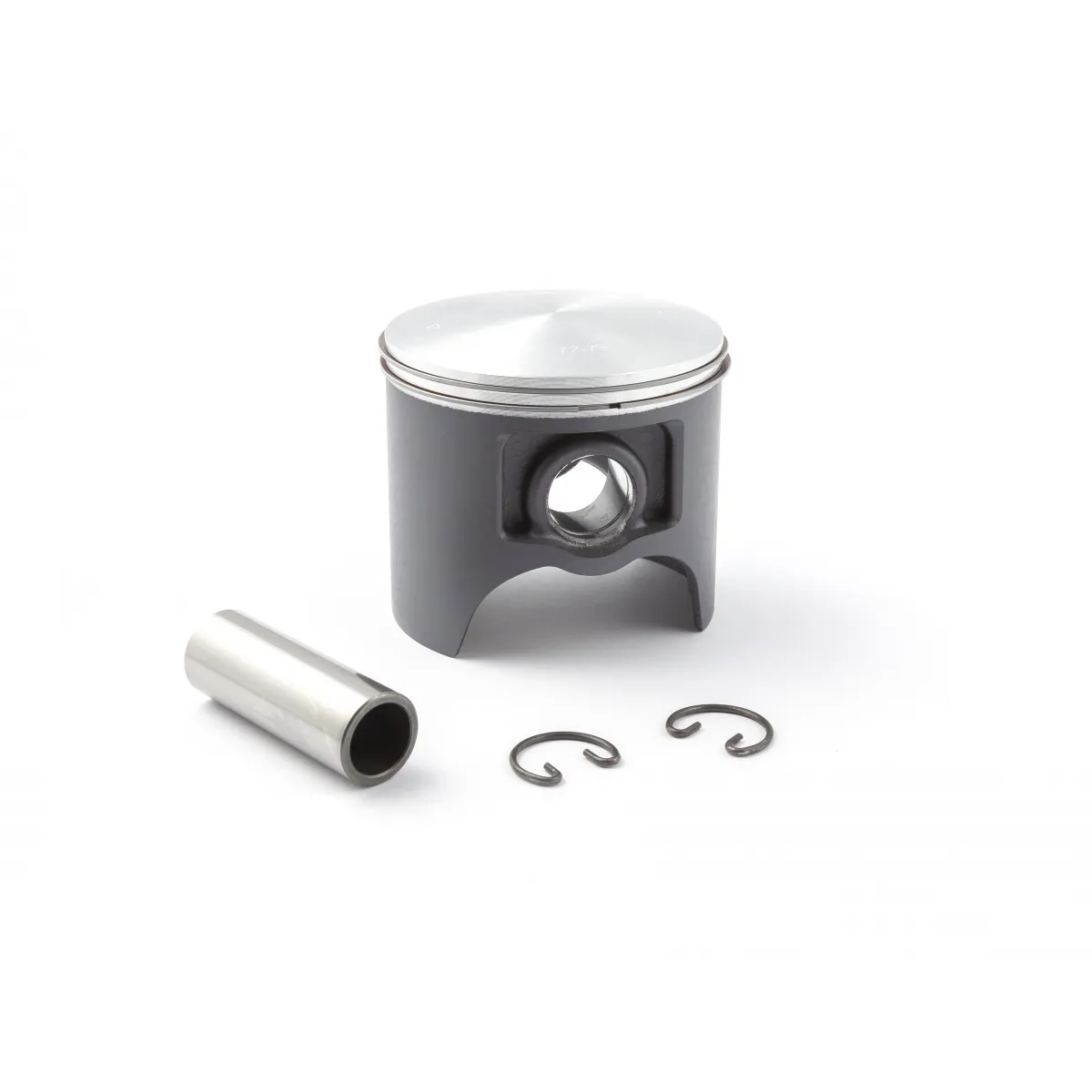

The kit includes:
• 1 Piston
• 2 Rings
• 1 Pin
• 2 Snap clips

SKU PI-SH-TR250
Brand S3

Be The First To Review This Product!

Help other The Hell Team Trials Store users shop smarter by writing reviews for products you have purchased.

Write a product review

What is the difference between piston and cylinder letters: A, B, or C?

The cylinders, once produced, are verified and according to the final verified measurement,
they are selected in "A", "B", "C" usually "A" is the smallest (nominal measurement)
 "B" is 0.01mm larger and "C" is 0.02mm larger than "A".

For this reason pistons of different sizes are also manufactured by "A", "B", "C"
to be able to assemble the piston with the most suitable clearance in each cylinder.

So if the piston or cylinder is "B" we always recommend using piston "B". The original pistons are marked on the piston dome, and most manufacturers usually stamp the cylinder just at the bottom of the cylinder back ledge (just above where the reed cage is).

Modern cylinders with Nicasil do not wear out if the use is in normal conditions,
but if the cylinder is very worn (this happens when dust enters the engine)
in this case we recommend getting a new Nicasil coating for the cylinder, but if not:
you can mount a piston one size larger to "compensate" for cylinder wear.
