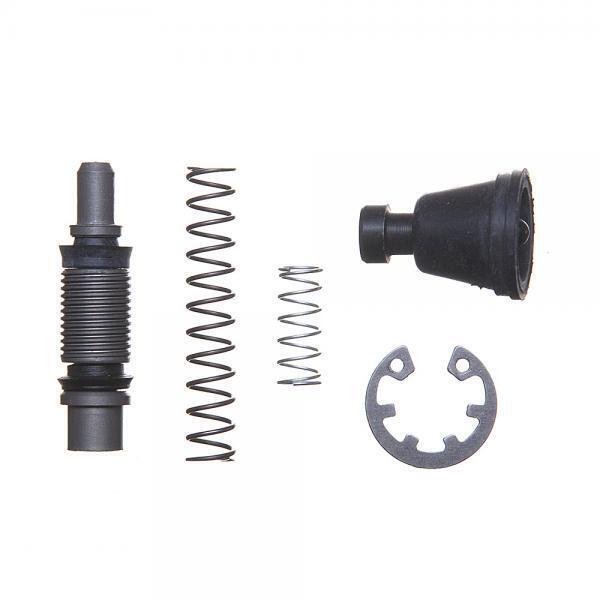

Repair kit for AJP Small Body "Racing" Clutch master cylinder. MINERAL OIL ONLY. (9.5 mm bore.)

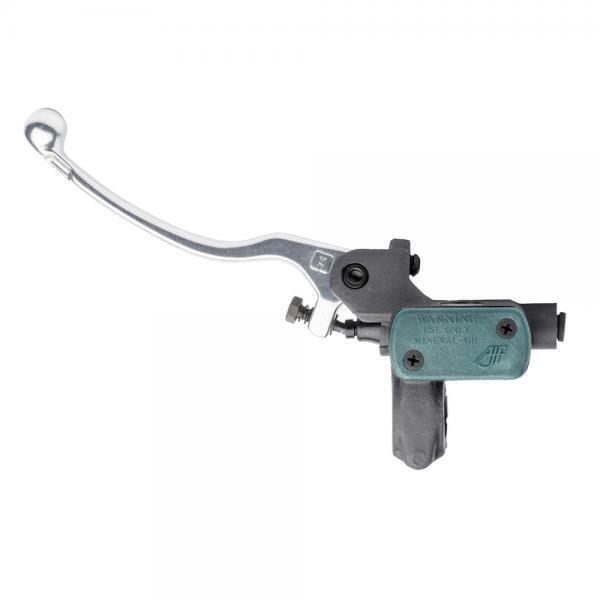

AJP Mineral Oil Clutch Master cylinders have a GREEN reservoir top, DOT4's have a black top, as delivered from the factory.

Fit:

GASGAS  from 2004-2013 using AJP mineral oil clutch Master cylinders. (BT460102811 supersedes  BT280422209)

2012→ JTG

2017 → Scorpa/Sherco Factory models  (part # 7882, incorrectly listed in some manuals as 6601)

(Note: Does not fit models using DOT4 brake fluid. Rubber compound is different. For front brake and DOT4 clutch applications, see BT280222209 )

NOTE re Gas Gas Part numbers:

As of June 2012 the GG part BT280422209 is now superseded by BT460102811 - the outer sealing 'o' ring is now a seal hence a part number change.

If you order the standard BT280422209 and we will supply the new part to you.

Braktec part numbers: Braktec 150.00.602C (12mm plunger),  150.00.605C (14mm plunger),  and 150.00.594C (10mm plunger)

SKU 150.00.605C
Brand BRAKTEC
Shipping Weight 0.1000kg
